details van de producten

Huis > Producten >

Open Kader Diesel Generator

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator

Alle Categorieën

De Reeks van de waterpomp

Contacteer ons

Mr. Jason Jiang

power01@sanrock.com.cn

0086 17357052522

Contact opnemen

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator

Merknaam:	SANROCK POWER
Modelnummer:	SPDG20KW
MOQ:	1 set
Prijs:	Chat with supplier now for more details.
Verpakking:	Naaktpakket voor machines, houten doospakket voor reserveonderdelen of klantvraag.
Betalingsvoorwaarden:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Zhejiang, China

Certificering:

CE;ISO

Document:

Productnaam:

open type generatorset / open type generatorset

Frequentie:

50 Hz/60 Hz

Spanning:

48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V

Cilinder:

3/4/6/12-Volgens vermogen

Cilindernummer:

3,4,6,8,12cylinders

Fasenummer en aansluiting:

3-fasig 4-draad systeem

Koelsysteem:

Waterkoeling

Afmeting van reeks (mm):

1485*700*1000mm~7300*2440*2800mm

Netto gewicht van reeks (kg):

Gespecificeerd

Rated Power (KW/1500 tpm):

5-2250KVA

Snelheid:

1500/1800 tpm

Type:

Type trailer, stil type, containertype, super stil type, open frame, draagbaar type, mobiel type, lu

Nominaal vermogen:

20 kW, 30 kW, 40 kW, 50 kW, 80 kW, 100 kW, 200 kW, 300 kW, 800 kW, 1000 kW, 1200 kW, 1500 kW, 1800 k

Sollicitatie:

Fabriek, gebouw, boerderij, bank enz

Gebruik:

Gemeenschappelijke eenheden, standby-eenheid

Hartinfarct:

Viertakt

Logistiek:

Transport van de hele machine of demontagetransport; Vervoer over zee of per spoor

Levering vermogen:

100000set/maand

Markeren:

two wheels trailer diesel generator

mini diesel generator set

open frame diesel generator with warranty

Productbeschrijving

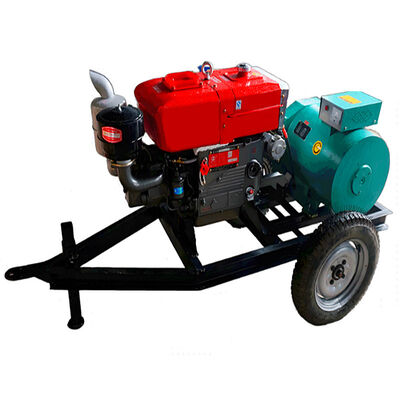

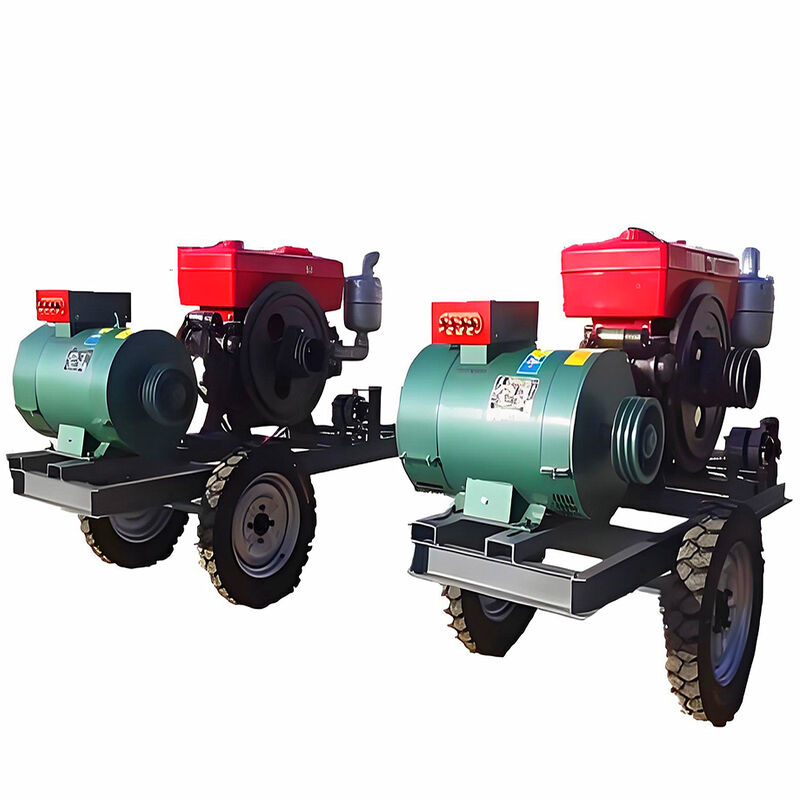

Two-Wheel Trailer-Mounted 20kW Open-Frame Diesel Generator
Engineered for optimal mobility and rapid deployment, this two-wheel trailer-mounted 20kW open-frame diesel generator combines robust power output with exceptional towing convenience. The heavy-duty steel trailer features a balanced axle configuration, leaf spring suspension, and high-grade pneumatic tires, ensuring smooth transport across various terrains while maintaining compact dimensions for enhanced maneuverability.
Key Features:
Optimized Towing Design: Balanced weight distribution and a standard tow hitch enable safe pulling behind SUVs, light trucks, or utility vehicles
Rugged Chassis Construction: Reinforced trailer frame with corrosion-resistant coating and integrated stabilizer jacks for secure operation
Enhanced Cooling Efficiency: Open-frame structure allows unimpeded airflow, supporting continuous operation at full load
User-Friendly Operation: Includes integrated control panel with voltage meter, frequency monitor, and safety alarms
Compliance Ready: Equipped with trailer lighting systems (brake/tail lights) for road safety regulation adherence

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 12

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 13

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 14

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 15

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 16

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 17

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 18

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 19

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 20

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 21

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 22

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 23

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 24

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 25

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 26

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 27

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 28

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 29

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
